Convection_Diffusion_Temperature_sensibility

#include <Convection_Diffusion_Temperature_sensibility.h>

: class Convection_Diffusion_Temperature_sensibility

How to cite this class in this doc

RST

:ref:`Convection\_Diffusion\_Temperature\_sensibility <class-convection-diffusion-temperature-sensibility>`

Markdown

[Convection\_Diffusion\_Temperature\_sensibility](#class-convection-diffusion-temperature-sensibility)

Detailed description

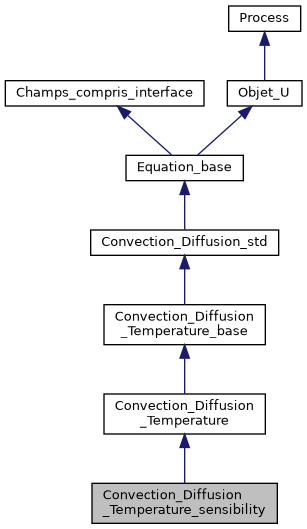

Inherits from

• public : Convection_Diffusion_Temperature

List of Public Methods

• associate_evaluator_field

• Convection_Diffusion_Temperature_sensibility

• duplique

• get_info

• get_poly_chaos_value

• get_temperature_state

• get_temperature_state_field

• get_uncertain_variable_name

• get_velocity_state

• get_velocity_state_field

• lire_motcle_non_standard

• mettre_a_jour

• set_param

• taille_memoire

• update_evaluator_field

• ~Convection_Diffusion_Temperature_sensibility

List of Public Static Methods

• cree_instance

• info

• self_cast

• self_cast

List of Protected Methods

• printOn

• readOn

Complete Member Function Documentation

associate_evaluator_field

void Convection_Diffusion_Temperature_sensibility::associate_evaluator_field(const Nom &one_name_state_pb, const Motcle &one_name_state_field)

References

• Process::exit

• Equation_base::le_nom

• name_velocity_state_field

• Interprete::objet

• Equation_base::probleme

• temperature_state_field

• velocity_state_field

Referenced By

• lire_motcle_non_standard

How to cite in this doc:

RST

:ref:`void Convection_Diffusion_Temperature_sensibility::associate_evaluator_field(const Nom &one_name_state_pb, const Motcle &one_name_state_field) <public-void-convection-diffusion-temperature-sensibility-associate-evaluator-field-const-nom-ref-one-name-state-pb-const-motcle-ref-one-name-state-field>`

Markdown

[void Convection_Diffusion_Temperature_sensibility::associate_evaluator_field(const Nom &one_name_state_pb, const Motcle &one_name_state_field)](#public-void-convection-diffusion-temperature-sensibility-associate-evaluator-field-const-nom-ref-one-name-state-pb-const-motcle-ref-one-name-state-field)

Convection_Diffusion_Temperature_sensibility

Convection_Diffusion_Temperature_sensibility::Convection_Diffusion_Temperature_sensibility()

How to cite in this doc:

RST

:ref:`Convection_Diffusion_Temperature_sensibility::Convection_Diffusion_Temperature_sensibility() <public-convection-diffusion-temperature-sensibility-convection-diffusion-temperature-sensibility>`

Markdown

[Convection_Diffusion_Temperature_sensibility::Convection_Diffusion_Temperature_sensibility()](#public-convection-diffusion-temperature-sensibility-convection-diffusion-temperature-sensibility)

duplique

int Convection_Diffusion_Temperature_sensibility::duplique() const override

Reimplements:

• duplique

How to cite in this doc:

RST

:ref:`int Convection_Diffusion_Temperature_sensibility::duplique() const override <public-int-convection-diffusion-temperature-sensibility-duplique-const-override>`

Markdown

[int Convection_Diffusion_Temperature_sensibility::duplique() const override](#public-int-convection-diffusion-temperature-sensibility-duplique-const-override)

get_info

const Type_info * Convection_Diffusion_Temperature_sensibility::get_info() const override

Donne des informations sur le type de l’ Objet_U .

Reimplements:

• get_info

How to cite in this doc:

RST

:ref:`const Type_info * Convection_Diffusion_Temperature_sensibility::get_info() const override <public-const-type-info-ptr-convection-diffusion-temperature-sensibility-get-info-const-override>`

Markdown

[const Type_info * Convection_Diffusion_Temperature_sensibility::get_info() const override](#public-const-type-info-ptr-convection-diffusion-temperature-sensibility-get-info-const-override)

get_poly_chaos_value

const double & Convection_Diffusion_Temperature_sensibility::get_poly_chaos_value() const

References

• poly_chaos

Referenced By

• Operateur_Conv_sensibility_VEF::ajouter

How to cite in this doc:

RST

:ref:`const double & Convection_Diffusion_Temperature_sensibility::get_poly_chaos_value() const <public-const-double-ref-convection-diffusion-temperature-sensibility-get-poly-chaos-value-const>`

Markdown

[const double & Convection_Diffusion_Temperature_sensibility::get_poly_chaos_value() const](#public-const-double-ref-convection-diffusion-temperature-sensibility-get-poly-chaos-value-const)

get_temperature_state

const Champ_Inc_base & Convection_Diffusion_Temperature_sensibility::get_temperature_state() const

References

• temperature_state_field

• TRUST_Ref<_CLASSE_>::valeur

How to cite in this doc:

RST

:ref:`const Champ_Inc_base & Convection_Diffusion_Temperature_sensibility::get_temperature_state() const <public-const-champ-inc-base-ref-convection-diffusion-temperature-sensibility-get-temperature-state-const>`

Markdown

[const Champ_Inc_base & Convection_Diffusion_Temperature_sensibility::get_temperature_state() const](#public-const-champ-inc-base-ref-convection-diffusion-temperature-sensibility-get-temperature-state-const)

get_temperature_state_field

const DoubleTab & Convection_Diffusion_Temperature_sensibility::get_temperature_state_field() const

References

• temperature_state_field

Referenced By

• Operateur_Conv_sensibility_VEF::ajouter

• Terme_Boussinesq_Sensibility_VEFPreP1B_Face::ajouter

How to cite in this doc:

RST

:ref:`const DoubleTab & Convection_Diffusion_Temperature_sensibility::get_temperature_state_field() const <public-const-doubletab-ref-convection-diffusion-temperature-sensibility-get-temperature-state-field-const>`

Markdown

[const DoubleTab & Convection_Diffusion_Temperature_sensibility::get_temperature_state_field() const](#public-const-doubletab-ref-convection-diffusion-temperature-sensibility-get-temperature-state-field-const)

get_uncertain_variable_name

const Motcle & Convection_Diffusion_Temperature_sensibility::get_uncertain_variable_name() const

References

• uncertain_var

Referenced By

• Operateur_Conv_sensibility_VEF::ajouter

• Terme_Boussinesq_Sensibility_VEFPreP1B_Face::ajouter

How to cite in this doc:

RST

:ref:`const Motcle & Convection_Diffusion_Temperature_sensibility::get_uncertain_variable_name() const <public-const-motcle-ref-convection-diffusion-temperature-sensibility-get-uncertain-variable-name-const>`

Markdown

[const Motcle & Convection_Diffusion_Temperature_sensibility::get_uncertain_variable_name() const](#public-const-motcle-ref-convection-diffusion-temperature-sensibility-get-uncertain-variable-name-const)

get_velocity_state

const Champ_Inc_base & Convection_Diffusion_Temperature_sensibility::get_velocity_state() const

References

• TRUST_Ref<_CLASSE_>::valeur

• velocity_state_field

Referenced By

• Operateur_Conv_sensibility_VEF::ajouter

How to cite in this doc:

RST

:ref:`const Champ_Inc_base & Convection_Diffusion_Temperature_sensibility::get_velocity_state() const <public-const-champ-inc-base-ref-convection-diffusion-temperature-sensibility-get-velocity-state-const>`

Markdown

[const Champ_Inc_base & Convection_Diffusion_Temperature_sensibility::get_velocity_state() const](#public-const-champ-inc-base-ref-convection-diffusion-temperature-sensibility-get-velocity-state-const)

get_velocity_state_field

const DoubleTab & Convection_Diffusion_Temperature_sensibility::get_velocity_state_field() const

References

• velocity_state_field

How to cite in this doc:

RST

:ref:`const DoubleTab & Convection_Diffusion_Temperature_sensibility::get_velocity_state_field() const <public-const-doubletab-ref-convection-diffusion-temperature-sensibility-get-velocity-state-field-const>`

Markdown

[const DoubleTab & Convection_Diffusion_Temperature_sensibility::get_velocity_state_field() const](#public-const-doubletab-ref-convection-diffusion-temperature-sensibility-get-velocity-state-field-const)

lire_motcle_non_standard

int Convection_Diffusion_Temperature_sensibility::lire_motcle_non_standard(const Motcle &mot, Entree &is) override

Lecture des parametres de type non simple d’un objet_U a partir d’un flot d’entree.

Reimplements:

• lire_motcle_non_standard

References

• associate_evaluator_field

• Process::exit

• Convection_Diffusion_Temperature::lire_motcle_non_standard

• name_state_pb

• name_temperature_state_field

• name_velocity_state_field

• poly_chaos

• Objet_U::que_suis_je

• uncertain_var

How to cite in this doc:

RST

:ref:`int Convection_Diffusion_Temperature_sensibility::lire_motcle_non_standard(const Motcle &mot, Entree &is) override <public-int-convection-diffusion-temperature-sensibility-lire-motcle-non-standard-const-motcle-ref-mot-entree-ref-is-override>`

Markdown

[int Convection_Diffusion_Temperature_sensibility::lire_motcle_non_standard(const Motcle &mot, Entree &is) override](#public-int-convection-diffusion-temperature-sensibility-lire-motcle-non-standard-const-motcle-ref-mot-entree-ref-is-override)

mettre_a_jour

void Convection_Diffusion_Temperature_sensibility::mettre_a_jour(double temps) override

La valeur de l’inconnue sur le pas de temps a ete calculee.

Cette methode avance le present jusqu’au temps passe en parametre. Elle met aussi a jour les proprietes du milieu.

Reimplements:

• mettre_a_jour

References

• Equation_base::mettre_a_jour

• name_state_pb

• name_temperature_state_field

• name_velocity_state_field

• update_evaluator_field

How to cite in this doc:

RST

:ref:`void Convection_Diffusion_Temperature_sensibility::mettre_a_jour(double temps) override <public-void-convection-diffusion-temperature-sensibility-mettre-a-jour-double-temps-override>`

Markdown

[void Convection_Diffusion_Temperature_sensibility::mettre_a_jour(double temps) override](#public-void-convection-diffusion-temperature-sensibility-mettre-a-jour-double-temps-override)

set_param

void Convection_Diffusion_Temperature_sensibility::set_param(Param &param) override

Reimplements:

• set_param

References

• Param::ajouter_non_std

• Param::OPTIONAL

• poly_chaos

• Param::REQUIRED

• Convection_Diffusion_Temperature::set_param

How to cite in this doc:

RST

:ref:`void Convection_Diffusion_Temperature_sensibility::set_param(Param &param) override <public-void-convection-diffusion-temperature-sensibility-set-param-param-ref-param-override>`

Markdown

[void Convection_Diffusion_Temperature_sensibility::set_param(Param &param) override](#public-void-convection-diffusion-temperature-sensibility-set-param-param-ref-param-override)

taille_memoire

unsigned Convection_Diffusion_Temperature_sensibility::taille_memoire() const override

Reimplements:

• taille_memoire

How to cite in this doc:

RST

:ref:`unsigned Convection_Diffusion_Temperature_sensibility::taille_memoire() const override <public-unsigned-convection-diffusion-temperature-sensibility-taille-memoire-const-override>`

Markdown

[unsigned Convection_Diffusion_Temperature_sensibility::taille_memoire() const override](#public-unsigned-convection-diffusion-temperature-sensibility-taille-memoire-const-override)

update_evaluator_field

void Convection_Diffusion_Temperature_sensibility::update_evaluator_field(const Nom &one_name_state_pb, const Motcle &one_name_state_field)

References

• name_velocity_state_field

• Interprete::objet

• temperature_state_field

• velocity_state_field

Referenced By

• mettre_a_jour

How to cite in this doc:

RST

:ref:`void Convection_Diffusion_Temperature_sensibility::update_evaluator_field(const Nom &one_name_state_pb, const Motcle &one_name_state_field) <public-void-convection-diffusion-temperature-sensibility-update-evaluator-field-const-nom-ref-one-name-state-pb-const-motcle-ref-one-name-state-field>`

Markdown

[void Convection_Diffusion_Temperature_sensibility::update_evaluator_field(const Nom &one_name_state_pb, const Motcle &one_name_state_field)](#public-void-convection-diffusion-temperature-sensibility-update-evaluator-field-const-nom-ref-one-name-state-pb-const-motcle-ref-one-name-state-field)

~Convection_Diffusion_Temperature_sensibility

Convection_Diffusion_Temperature_sensibility::~Convection_Diffusion_Temperature_sensibility()

How to cite in this doc:

RST

:ref:`Convection_Diffusion_Temperature_sensibility::~Convection_Diffusion_Temperature_sensibility() <public-convection-diffusion-temperature-sensibility-dtor-convection-diffusion-temperature-sensibility>`

Markdown

[Convection_Diffusion_Temperature_sensibility::~Convection_Diffusion_Temperature_sensibility()](#public-convection-diffusion-temperature-sensibility-dtor-convection-diffusion-temperature-sensibility)

cree_instance

Objet_U * Convection_Diffusion_Temperature_sensibility::cree_instance()

How to cite in this doc:

RST

:ref:`Objet_U * Convection_Diffusion_Temperature_sensibility::cree_instance() <public-static-objet-u-ptr-convection-diffusion-temperature-sensibility-cree-instance>`

Markdown

[Objet_U * Convection_Diffusion_Temperature_sensibility::cree_instance()](#public-static-objet-u-ptr-convection-diffusion-temperature-sensibility-cree-instance)

info

const Type_info * Convection_Diffusion_Temperature_sensibility::info()

How to cite in this doc:

RST

:ref:`const Type_info * Convection_Diffusion_Temperature_sensibility::info() <public-static-const-type-info-ptr-convection-diffusion-temperature-sensibility-info>`

Markdown

[const Type_info * Convection_Diffusion_Temperature_sensibility::info()](#public-static-const-type-info-ptr-convection-diffusion-temperature-sensibility-info)

self_cast

const Convection_Diffusion_Temperature_sensibility & Convection_Diffusion_Temperature_sensibility::self_cast(const Objet_U &)

How to cite in this doc:

RST

:ref:`const Convection_Diffusion_Temperature_sensibility & Convection_Diffusion_Temperature_sensibility::self_cast(const Objet_U &) <public-static-const-convection-diffusion-temperature-sensibility-ref-convection-diffusion-temperature-sensibility-self-cast-const-objet-u-ref>`

Markdown

[const Convection_Diffusion_Temperature_sensibility & Convection_Diffusion_Temperature_sensibility::self_cast(const Objet_U &)](#public-static-const-convection-diffusion-temperature-sensibility-ref-convection-diffusion-temperature-sensibility-self-cast-const-objet-u-ref)

self_cast

Convection_Diffusion_Temperature_sensibility & Convection_Diffusion_Temperature_sensibility::self_cast(Objet_U &)

How to cite in this doc:

RST

:ref:`Convection_Diffusion_Temperature_sensibility & Convection_Diffusion_Temperature_sensibility::self_cast(Objet_U &) <public-static-convection-diffusion-temperature-sensibility-ref-convection-diffusion-temperature-sensibility-self-cast-objet-u-ref>`

Markdown

[Convection_Diffusion_Temperature_sensibility & Convection_Diffusion_Temperature_sensibility::self_cast(Objet_U &)](#public-static-convection-diffusion-temperature-sensibility-ref-convection-diffusion-temperature-sensibility-self-cast-objet-u-ref)

printOn

Sortie & Convection_Diffusion_Temperature_sensibility::printOn(Sortie &x) const override

Simple appel a Equation_base::printOn(Sortie&)

Reimplements:

• printOn

References

• Convection_Diffusion_Temperature::printOn

How to cite in this doc:

RST

:ref:`Sortie & Convection_Diffusion_Temperature_sensibility::printOn(Sortie &x) const override <protected-sortie-ref-convection-diffusion-temperature-sensibility-printon-sortie-ref-x-const-override>`

Markdown

[Sortie & Convection_Diffusion_Temperature_sensibility::printOn(Sortie &x) const override](#protected-sortie-ref-convection-diffusion-temperature-sensibility-printon-sortie-ref-x-const-override)

readOn

Entree & Convection_Diffusion_Temperature_sensibility::readOn(Entree &) override

cf Equation_base::readOn(Entree&)

Reimplements:

• readOn

References

• Convection_Diffusion_Temperature::readOn

How to cite in this doc:

RST

:ref:`Entree & Convection_Diffusion_Temperature_sensibility::readOn(Entree &) override <protected-entree-ref-convection-diffusion-temperature-sensibility-readon-entree-ref-override>`

Markdown

[Entree & Convection_Diffusion_Temperature_sensibility::readOn(Entree &) override](#protected-entree-ref-convection-diffusion-temperature-sensibility-readon-entree-ref-override)

Attributes Documentation

info_obj (public)

const Type_info Convection_Diffusion_Temperature_sensibility::info_obj

name_state_pb (protected)

Nom Convection_Diffusion_Temperature_sensibility::name_state_pb

name_temperature_state_field (protected)

Motcle Convection_Diffusion_Temperature_sensibility::name_temperature_state_field

name_velocity_state_field (protected)

Motcle Convection_Diffusion_Temperature_sensibility::name_velocity_state_field

poly_chaos (protected)

double Convection_Diffusion_Temperature_sensibility::poly_chaos

temperature_state_field (protected)

TRUST_Ref<Champ_Inc_base *> Convection_Diffusion_Temperature_sensibility::temperature_state_field

uncertain_var (protected)

Motcle Convection_Diffusion_Temperature_sensibility::uncertain_var

velocity_state_field (protected)

TRUST_Ref<Champ_Inc_base *> Convection_Diffusion_Temperature_sensibility::velocity_state_field
