Neumann

#include <Neumann.h>

Brief description

Classe Neumann Cette classe est la classe de base de la hierarchie des conditions aux limites de type Neumann .

How to reference this class

Copy the following pieces of RST/Markdown code to cite this element in other parts of the sphinx documentation (there is a copy button on the top-right when hovering the code block):

RST

:ref:`Neumann <class-neumann>`

Markdown

[Neumann](#class-neumann)

Detailed description

Une condition aux limites de type Neumann impose la valeur de la derivee d’un champ inconnue sur une frontiere, ce qui correspond a:

Inherits from

• public : Cond_lim_base

Inherited by

• public : Neumann_paroi

• public : Neumann_val_ext

• public : Sortie_libre_Text_H_ext

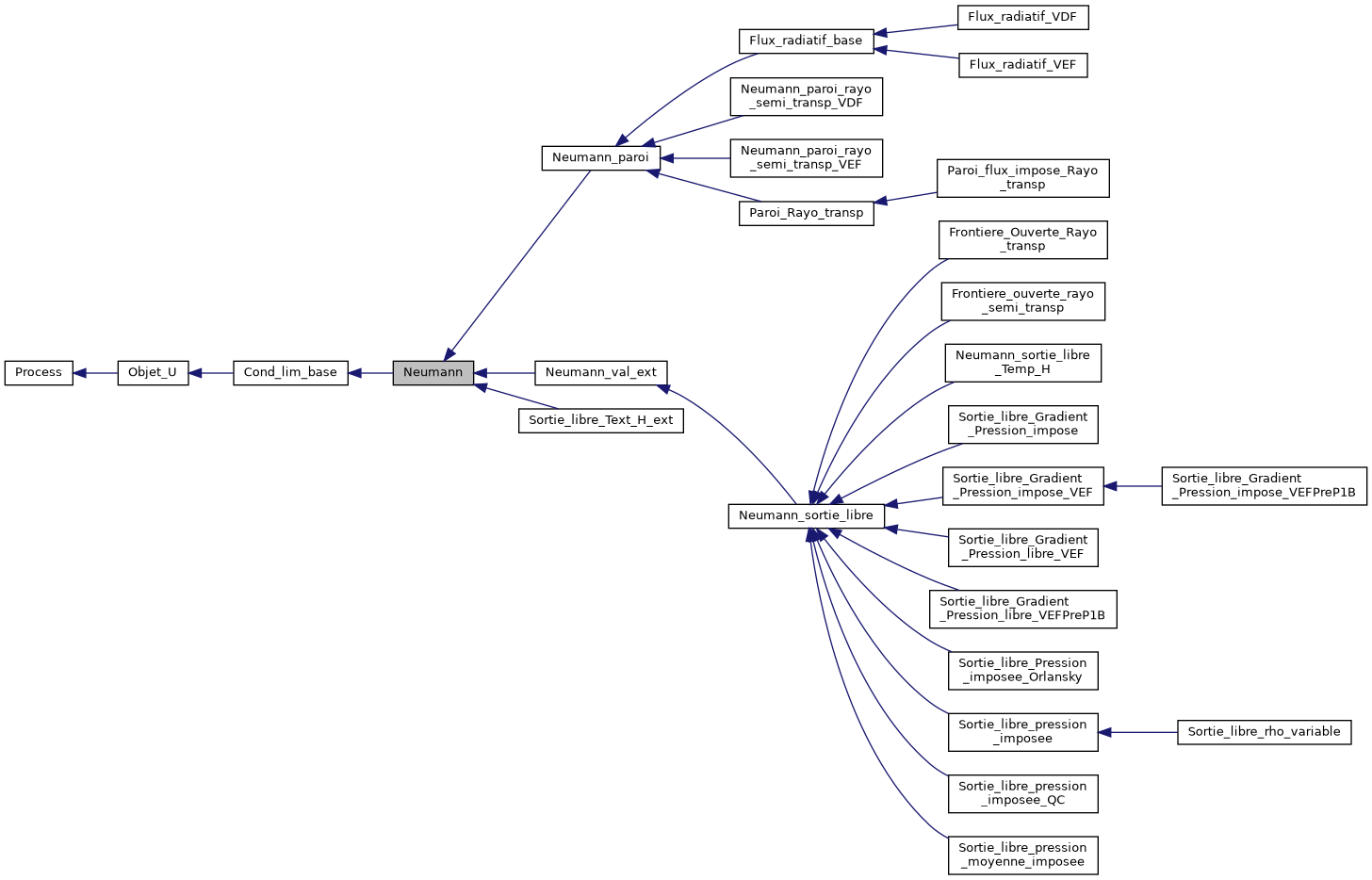

Inheritance graph

If the image is too small, right-click and open in new tab

List of Public Methods

• flux_impose

• flux_impose

• flux_impose

• get_info

• Neumann

• ~Neumann

List of Public Static Methods

• info

• self_cast

• self_cast

List of Protected Methods

• printOn

• readOn

Complete Member Function Documentation

flux_impose

Definition

const DoubleTab & Neumann::flux_impose(bool nb_faces_tot=false) const

Brief description

Updates and returns the imposed flux array.

Detailed description

This function checks the total number of faces in the boundary and resizes the array if necessary. It updates the values based on the imposed flux from the front field if the field is unsteady or if the dimensions have changed.

References

• TRUSTTab<_TYPE_, _SIZE_>::dimension

• TRUSTTab<_TYPE_, _SIZE_>::dimension_tot

• flux_impose

• flux_impose_

• Cond_lim_base::frontiere_dis

• Champ_front_base::instationnaire

• Cond_lim_base::le_champ_front

• Front_VF::nb_faces

• Front_VF::nb_faces_tot

• TRUSTTab<_TYPE_, _SIZE_>::resize

• TRUSTVect<_TYPE_, _SIZE_>::size

• Champ_front_base::valeurs

How to reference this method:

Copy the following pieces of RST/Markdown code to cite this element in other parts of the sphinx documentation (there is a copy button on the top-right when hovering the code block):

RST

:ref:`const DoubleTab & Neumann::flux_impose(bool nb_faces_tot=false) const <neumann-public-const-doubletab-ref-neumann-flux-impose-bool-nb-faces-tot-equal-false-const>`

Markdown

[const DoubleTab & Neumann::flux_impose(bool nb_faces_tot=false) const](#neumann-public-const-doubletab-ref-neumann-flux-impose-bool-nb-faces-tot-equal-false-const)

flux_impose

Definition

double Neumann::flux_impose(int i) const

Brief description

Renvoie la valeur du flux impose sur la i - eme composante du champ representant le flux a la frontiere.

Detailed description

References

• TRUSTTab<_TYPE_, _SIZE_>::dimension

• Process::exit

• Cond_lim_base::le_champ_front

• TRUSTVect<_TYPE_, _SIZE_>::size

• Champ_front_base::valeurs

Referenced By

• Operateur_Conv_sensibility_VEF::add_diffusion_scalar_term

• Op_Grad_PolyMAC_Face::ajouter

• Op_Diff_VEF_Face_Q1::ajouter

• Op_Dift_VEF_Face_Q1::ajouter

• Op_Grad_P0_to_Face::ajouter_blocs

• Op_Grad_VDF_Face::ajouter_blocs

• Op_Grad_EF::ajouter_bord

• Op_Diff_EF::ajouter_bords

• Op_Dift_EF_Q1::ajouter_bords

• Op_Diff_VEF_Anisotrope_Face::ajouter_cas_multi_scalaire

• Op_Diff_VEF_Face::ajouter_cas_multi_scalaire

• Op_Diff_VEF_Anisotrope_Face::ajouter_cas_scalaire

• Op_Diff_VEF_Face::ajouter_cas_scalaire

• Op_Grad_VEF_P1B_Face::ajouter_elem

• Op_Diff_VEFP1NCP1B_Face::calculer_flux_bords_elem

• Op_Diff_VEFP1NCP1B_Face::calculer_flux_bords_som

• Paroi_scal_hyd_base_EF::compute_nusselt

• Paroi_scal_hyd_base_VDF::compute_nusselt

• Paroi_scal_hyd_base_VEF::compute_nusselt

• Op_Diff_VEF_Anisotrope_Face::contribue_au_second_membre

• Op_Diff_VEF_Face::contribue_au_second_membre

• Op_Diff_VEF_Face_Q1::contribue_au_second_membre

• Op_Dift_VEF_Face::contribuer_au_second_membre

• Op_Diff_VEFP1NCP1B_Face::corriger_div_pour_Cl

• flux_impose

• Loi_Paroi_Nu_Impose_VDF::imprimer_nusselt

• Loi_Paroi_Nu_Impose_VEF::imprimer_nusselt

• Op_Diff_VEF_Face_Stab::modifie_pour_Cl

• Assembleur_P_EF::modifier_secmem

• Assembleur_P_PolyMAC::modifier_secmem

• Assembleur_P_VEF::modifier_secmem

• AssembleurPVDF_PF::modifier_secmem_pression_imposee

• Assembleur_P_VDF::modifier_secmem_pression_imposee

How to reference this method:

Copy the following pieces of RST/Markdown code to cite this element in other parts of the sphinx documentation (there is a copy button on the top-right when hovering the code block):

RST

:ref:`double Neumann::flux_impose(int i) const <neumann-public-double-neumann-flux-impose-int-i-const>`

Markdown

[double Neumann::flux_impose(int i) const](#neumann-public-double-neumann-flux-impose-int-i-const)

flux_impose

Definition

double Neumann::flux_impose(int i, int j) const

Brief description

Renvoie la valeur du flux impose sur la (i,j) - eme composante du champ representant le flux a la frontiere.

Detailed description

References

• TRUSTTab<_TYPE_, _SIZE_>::dimension

• Cond_lim_base::le_champ_front

• Champ_front_base::valeurs

How to reference this method:

Copy the following pieces of RST/Markdown code to cite this element in other parts of the sphinx documentation (there is a copy button on the top-right when hovering the code block):

RST

:ref:`double Neumann::flux_impose(int i, int j) const <neumann-public-double-neumann-flux-impose-int-i-int-j-const>`

Markdown

[double Neumann::flux_impose(int i, int j) const](#neumann-public-double-neumann-flux-impose-int-i-int-j-const)

get_info

Definition

const Type_info * Neumann::get_info() const override

Brief description

Donne des informations sur le type de l’ Objet_U .

Detailed description

Reimplements:

• get_info

How to reference this method:

Copy the following pieces of RST/Markdown code to cite this element in other parts of the sphinx documentation (there is a copy button on the top-right when hovering the code block):

RST

:ref:`const Type_info * Neumann::get_info() const override <neumann-public-const-type-info-ptr-neumann-get-info-const-override>`

Markdown

[const Type_info * Neumann::get_info() const override](#neumann-public-const-type-info-ptr-neumann-get-info-const-override)

Neumann

Definition

Neumann::Neumann()

Brief description

Detailed description

How to reference this method:

Copy the following pieces of RST/Markdown code to cite this element in other parts of the sphinx documentation (there is a copy button on the top-right when hovering the code block):

RST

:ref:`Neumann::Neumann() <neumann-public-neumann-neumann>`

Markdown

[Neumann::Neumann()](#neumann-public-neumann-neumann)

~Neumann

Definition

Neumann::~Neumann() override

Brief description

Detailed description

How to reference this method:

Copy the following pieces of RST/Markdown code to cite this element in other parts of the sphinx documentation (there is a copy button on the top-right when hovering the code block):

RST

:ref:`Neumann::~Neumann() override <neumann-public-neumann-dtor-neumann-override>`

Markdown

[Neumann::~Neumann() override](#neumann-public-neumann-dtor-neumann-override)

info

Definition

const Type_info * Neumann::info()

Brief description

Detailed description

How to reference this method:

Copy the following pieces of RST/Markdown code to cite this element in other parts of the sphinx documentation (there is a copy button on the top-right when hovering the code block):

RST

:ref:`const Type_info * Neumann::info() <neumann-public-static-const-type-info-ptr-neumann-info>`

Markdown

[const Type_info * Neumann::info()](#neumann-public-static-const-type-info-ptr-neumann-info)

self_cast

Definition

const Neumann & Neumann::self_cast(const Objet_U &)

Brief description

Detailed description

How to reference this method:

Copy the following pieces of RST/Markdown code to cite this element in other parts of the sphinx documentation (there is a copy button on the top-right when hovering the code block):

RST

:ref:`const Neumann & Neumann::self_cast(const Objet_U &) <neumann-public-static-const-neumann-ref-neumann-self-cast-const-objet-u-ref>`

Markdown

[const Neumann & Neumann::self_cast(const Objet_U &)](#neumann-public-static-const-neumann-ref-neumann-self-cast-const-objet-u-ref)

self_cast

Definition

Neumann & Neumann::self_cast(Objet_U &)

Brief description

Detailed description

How to reference this method:

Copy the following pieces of RST/Markdown code to cite this element in other parts of the sphinx documentation (there is a copy button on the top-right when hovering the code block):

RST

:ref:`Neumann & Neumann::self_cast(Objet_U &) <neumann-public-static-neumann-ref-neumann-self-cast-objet-u-ref>`

Markdown

[Neumann & Neumann::self_cast(Objet_U &)](#neumann-public-static-neumann-ref-neumann-self-cast-objet-u-ref)

printOn

Definition

Sortie & Neumann::printOn(Sortie &x) const override

Brief description

Ecriture de l’objet sur un flot de sortie Methode a surcharger.

Detailed description

Reimplements:

• printOn

References

• Objet_U::que_suis_je

How to reference this method:

Copy the following pieces of RST/Markdown code to cite this element in other parts of the sphinx documentation (there is a copy button on the top-right when hovering the code block):

RST

:ref:`Sortie & Neumann::printOn(Sortie &x) const override <neumann-protected-sortie-ref-neumann-printon-sortie-ref-x-const-override>`

Markdown

[Sortie & Neumann::printOn(Sortie &x) const override](#neumann-protected-sortie-ref-neumann-printon-sortie-ref-x-const-override)

readOn

Definition

Entree & Neumann::readOn(Entree &) override

Brief description

Lecture d’un Objet_U sur un flot d’entree Methode a surcharger.

Detailed description

Reimplements:

• readOn

References

• Cond_lim_base::readOn

Referenced By

• Neumann_paroi::readOn

How to reference this method:

Copy the following pieces of RST/Markdown code to cite this element in other parts of the sphinx documentation (there is a copy button on the top-right when hovering the code block):

RST

:ref:`Entree & Neumann::readOn(Entree &) override <neumann-protected-entree-ref-neumann-readon-entree-ref-override>`

Markdown

[Entree & Neumann::readOn(Entree &) override](#neumann-protected-entree-ref-neumann-readon-entree-ref-override)

Attributes Documentation

info_obj (public)

const Type_info Neumann::info_obj

flux_impose_ (protected)

DoubleTab Neumann::flux_impose_
