Op_Diff_K_Eps_VEF_Face

#include <Op_Diff_K_Eps_VEF_Face.h>

class Op_Diff_K_Eps_VEF_Face Cette classe represente l’operateur de diffusion turbulente

How to cite this class in this doc

RST

:ref:`Op\_Diff\_K\_Eps\_VEF\_Face <class-op-diff-k-eps-vef-face>`

Markdown

[Op\_Diff\_K\_Eps\_VEF\_Face](#class-op-diff-k-eps-vef-face)

Detailed description

La discretisation est VEF Les methodes pour l’implicite sont codees.

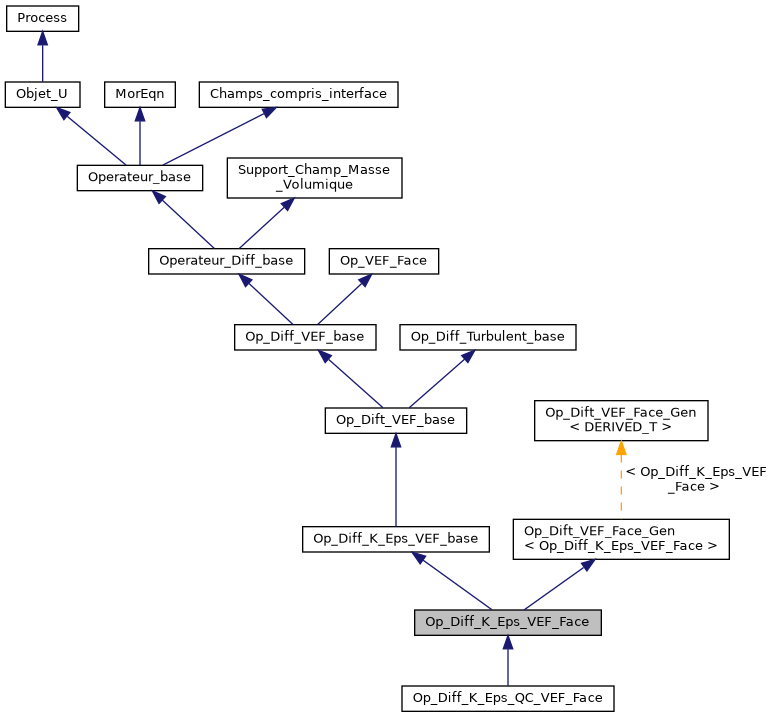

Inherits from

• public : Op_Diff_K_Eps_VEF_base

• public : Op_Dift_VEF_Face_Gen <Op_Diff_K_Eps_VEF_Face>

Inherited by

• public : Op_Diff_K_Eps_QC_VEF_Face

List of Public Methods

• ajouter

• contribuer_a_avec

• duplique

• get_info

• modifier_pour_Cl

• Op_Diff_K_Eps_VEF_Face

• taille_memoire

• ~Op_Diff_K_Eps_VEF_Face

List of Public Static Methods

• cree_instance

• info

• self_cast

• self_cast

List of Protected Methods

• printOn

• readOn

Complete Member Function Documentation

ajouter

DoubleTab & Op_Diff_K_Eps_VEF_Face::ajouter(const DoubleTab &, DoubleTab &) const override

Reimplements:

• ajouter

References

• Op_Diff_Turbulent_base::diffusivite_turbulente

• TRUSTTab<_TYPE_, _SIZE_>::dimension_tot

• Operateur_base::flux_bords_

• Op_Diff_VEF_base::le_dom_vef

• TRUSTVect<_TYPE_, _SIZE_>::line_size

• Op_VEF_Face::modifier_flux

• Op_Diff_VEF_base::nu_

• Op_Diff_K_Eps_VEF_base::Prdt

• Op_Diff_VEF_base::remplir_nu

• TRUSTTab<_TYPE_, _SIZE_>::resize

• Champ_Don_base::valeurs

Referenced By

• Op_Diff_K_Eps_QC_VEF_Face::ajouter

How to cite in this doc:

RST

:ref:`DoubleTab & Op_Diff_K_Eps_VEF_Face::ajouter(const DoubleTab &, DoubleTab &) const override <public-doubletab-ref-op-diff-k-eps-vef-face-ajouter-const-doubletab-ref-doubletab-ref-const-override>`

Markdown

[DoubleTab & Op_Diff_K_Eps_VEF_Face::ajouter(const DoubleTab &, DoubleTab &) const override](#public-doubletab-ref-op-diff-k-eps-vef-face-ajouter-const-doubletab-ref-doubletab-ref-const-override)

contribuer_a_avec

void Op_Diff_K_Eps_VEF_Face::contribuer_a_avec(const DoubleTab &, Matrice_Morse &) const override

DOES NOTHING - to override in derived classes.

Reimplements:

• contribuer_a_avec

References

• Op_Diff_Turbulent_base::diffusivite_turbulente

• TRUSTTab<_TYPE_, _SIZE_>::dimension_tot

• MorEqn::equation

• Op_VEF_Face::modifier_matrice_pour_periodique_apres_contribuer

• Op_VEF_Face::modifier_matrice_pour_periodique_avant_contribuer

• Op_Diff_VEF_base::nu_

• Op_Diff_VEF_base::phi_psi_diffuse

• Op_Diff_K_Eps_VEF_base::Prdt

• Op_Diff_VEF_base::remplir_nu

• Champ_Don_base::valeurs

How to cite in this doc:

RST

:ref:`void Op_Diff_K_Eps_VEF_Face::contribuer_a_avec(const DoubleTab &, Matrice_Morse &) const override <public-void-op-diff-k-eps-vef-face-contribuer-a-avec-const-doubletab-ref-matrice-morse-ref-const-override>`

Markdown

[void Op_Diff_K_Eps_VEF_Face::contribuer_a_avec(const DoubleTab &, Matrice_Morse &) const override](#public-void-op-diff-k-eps-vef-face-contribuer-a-avec-const-doubletab-ref-matrice-morse-ref-const-override)

duplique

int Op_Diff_K_Eps_VEF_Face::duplique() const override

Reimplements:

• duplique

How to cite in this doc:

RST

:ref:`int Op_Diff_K_Eps_VEF_Face::duplique() const override <public-int-op-diff-k-eps-vef-face-duplique-const-override>`

Markdown

[int Op_Diff_K_Eps_VEF_Face::duplique() const override](#public-int-op-diff-k-eps-vef-face-duplique-const-override)

get_info

const Type_info * Op_Diff_K_Eps_VEF_Face::get_info() const override

Donne des informations sur le type de l’ Objet_U .

Reimplements:

• get_info

How to cite in this doc:

RST

:ref:`const Type_info * Op_Diff_K_Eps_VEF_Face::get_info() const override <public-const-type-info-ptr-op-diff-k-eps-vef-face-get-info-const-override>`

Markdown

[const Type_info * Op_Diff_K_Eps_VEF_Face::get_info() const override](#public-const-type-info-ptr-op-diff-k-eps-vef-face-get-info-const-override)

modifier_pour_Cl

void Op_Diff_K_Eps_VEF_Face::modifier_pour_Cl(Matrice_Morse &matrice, DoubleTab &secmem) const override

DOES NOTHING - to override in derived classes.

Reimplements:

• modifier_pour_Cl

References

• TRUSTTab<_TYPE_, _SIZE_>::dimension

• MorEqn::equation

• Matrice_Morse::get_set_coeff

• Matrice_Morse::get_tab1

• Equation_base::inconnue

• Op_Dift_VEF_base::le_modele_turbulence

• TRUSTVect<_TYPE_, _SIZE_>::line_size

• Op_Dift_VEF_base::modifier_pour_Cl

• TRUSTArray<_TYPE_, _SIZE_>::size_array

• Champ_Inc_base::valeurs

How to cite in this doc:

RST

:ref:`void Op_Diff_K_Eps_VEF_Face::modifier_pour_Cl(Matrice_Morse &matrice, DoubleTab &secmem) const override <public-void-op-diff-k-eps-vef-face-modifier-pour-cl-matrice-morse-ref-matrice-doubletab-ref-secmem-const-override>`

Markdown

[void Op_Diff_K_Eps_VEF_Face::modifier_pour_Cl(Matrice_Morse &matrice, DoubleTab &secmem) const override](#public-void-op-diff-k-eps-vef-face-modifier-pour-cl-matrice-morse-ref-matrice-doubletab-ref-secmem-const-override)

Op_Diff_K_Eps_VEF_Face

Op_Diff_K_Eps_VEF_Face::Op_Diff_K_Eps_VEF_Face()

How to cite in this doc:

RST

:ref:`Op_Diff_K_Eps_VEF_Face::Op_Diff_K_Eps_VEF_Face() <public-op-diff-k-eps-vef-face-op-diff-k-eps-vef-face>`

Markdown

[Op_Diff_K_Eps_VEF_Face::Op_Diff_K_Eps_VEF_Face()](#public-op-diff-k-eps-vef-face-op-diff-k-eps-vef-face)

taille_memoire

unsigned Op_Diff_K_Eps_VEF_Face::taille_memoire() const override

Reimplements:

• taille_memoire

How to cite in this doc:

RST

:ref:`unsigned Op_Diff_K_Eps_VEF_Face::taille_memoire() const override <public-unsigned-op-diff-k-eps-vef-face-taille-memoire-const-override>`

Markdown

[unsigned Op_Diff_K_Eps_VEF_Face::taille_memoire() const override](#public-unsigned-op-diff-k-eps-vef-face-taille-memoire-const-override)

~Op_Diff_K_Eps_VEF_Face

Op_Diff_K_Eps_VEF_Face::~Op_Diff_K_Eps_VEF_Face()

How to cite in this doc:

RST

:ref:`Op_Diff_K_Eps_VEF_Face::~Op_Diff_K_Eps_VEF_Face() <public-op-diff-k-eps-vef-face-dtor-op-diff-k-eps-vef-face>`

Markdown

[Op_Diff_K_Eps_VEF_Face::~Op_Diff_K_Eps_VEF_Face()](#public-op-diff-k-eps-vef-face-dtor-op-diff-k-eps-vef-face)

cree_instance

Objet_U * Op_Diff_K_Eps_VEF_Face::cree_instance()

How to cite in this doc:

RST

:ref:`Objet_U * Op_Diff_K_Eps_VEF_Face::cree_instance() <public-static-objet-u-ptr-op-diff-k-eps-vef-face-cree-instance>`

Markdown

[Objet_U * Op_Diff_K_Eps_VEF_Face::cree_instance()](#public-static-objet-u-ptr-op-diff-k-eps-vef-face-cree-instance)

info

const Type_info * Op_Diff_K_Eps_VEF_Face::info()

How to cite in this doc:

RST

:ref:`const Type_info * Op_Diff_K_Eps_VEF_Face::info() <public-static-const-type-info-ptr-op-diff-k-eps-vef-face-info>`

Markdown

[const Type_info * Op_Diff_K_Eps_VEF_Face::info()](#public-static-const-type-info-ptr-op-diff-k-eps-vef-face-info)

self_cast

const Op_Diff_K_Eps_VEF_Face & Op_Diff_K_Eps_VEF_Face::self_cast(const Objet_U &)

How to cite in this doc:

RST

:ref:`const Op_Diff_K_Eps_VEF_Face & Op_Diff_K_Eps_VEF_Face::self_cast(const Objet_U &) <public-static-const-op-diff-k-eps-vef-face-ref-op-diff-k-eps-vef-face-self-cast-const-objet-u-ref>`

Markdown

[const Op_Diff_K_Eps_VEF_Face & Op_Diff_K_Eps_VEF_Face::self_cast(const Objet_U &)](#public-static-const-op-diff-k-eps-vef-face-ref-op-diff-k-eps-vef-face-self-cast-const-objet-u-ref)

self_cast

Op_Diff_K_Eps_VEF_Face & Op_Diff_K_Eps_VEF_Face::self_cast(Objet_U &)

How to cite in this doc:

RST

:ref:`Op_Diff_K_Eps_VEF_Face & Op_Diff_K_Eps_VEF_Face::self_cast(Objet_U &) <public-static-op-diff-k-eps-vef-face-ref-op-diff-k-eps-vef-face-self-cast-objet-u-ref>`

Markdown

[Op_Diff_K_Eps_VEF_Face & Op_Diff_K_Eps_VEF_Face::self_cast(Objet_U &)](#public-static-op-diff-k-eps-vef-face-ref-op-diff-k-eps-vef-face-self-cast-objet-u-ref)

printOn

Sortie & Op_Diff_K_Eps_VEF_Face::printOn(Sortie &x) const override

DOES NOTHING - to override in derived classes.

Imprime l’operateur sur un flot de sortie.

Reimplements:

• printOn

References

• Objet_U::que_suis_je

How to cite in this doc:

RST

:ref:`Sortie & Op_Diff_K_Eps_VEF_Face::printOn(Sortie &x) const override <protected-sortie-ref-op-diff-k-eps-vef-face-printon-sortie-ref-x-const-override>`

Markdown

[Sortie & Op_Diff_K_Eps_VEF_Face::printOn(Sortie &x) const override](#protected-sortie-ref-op-diff-k-eps-vef-face-printon-sortie-ref-x-const-override)

readOn

Entree & Op_Diff_K_Eps_VEF_Face::readOn(Entree &) override

DOES NOTHING - to override in derived classes.

Lit un operateur sur un flot d’entree.

Reimplements:

• readOn

How to cite in this doc:

RST

:ref:`Entree & Op_Diff_K_Eps_VEF_Face::readOn(Entree &) override <protected-entree-ref-op-diff-k-eps-vef-face-readon-entree-ref-override>`

Markdown

[Entree & Op_Diff_K_Eps_VEF_Face::readOn(Entree &) override](#protected-entree-ref-op-diff-k-eps-vef-face-readon-entree-ref-override)

Attributes Documentation

info_obj (public)

const Type_info Op_Diff_K_Eps_VEF_Face::info_obj
