Support_Champ_Masse_Volumique

#include <Support_Champ_Masse_Volumique.h>

Brief description

How to reference this class

Copy the following pieces of RST/Markdown code to cite this element in other parts of the sphinx documentation (there is a copy button on the top-right when hovering the code block):

RST

:ref:`Support\_Champ\_Masse\_Volumique <class-support-champ-masse-volumique>`

Markdown

[Support\_Champ\_Masse\_Volumique](#class-support-champ-masse-volumique)

Detailed description

Inherited by

• public : Modele_turbulence_hyd_base

• public : Operateur_Diff_base

• public : Traitement_particulier_NS_base

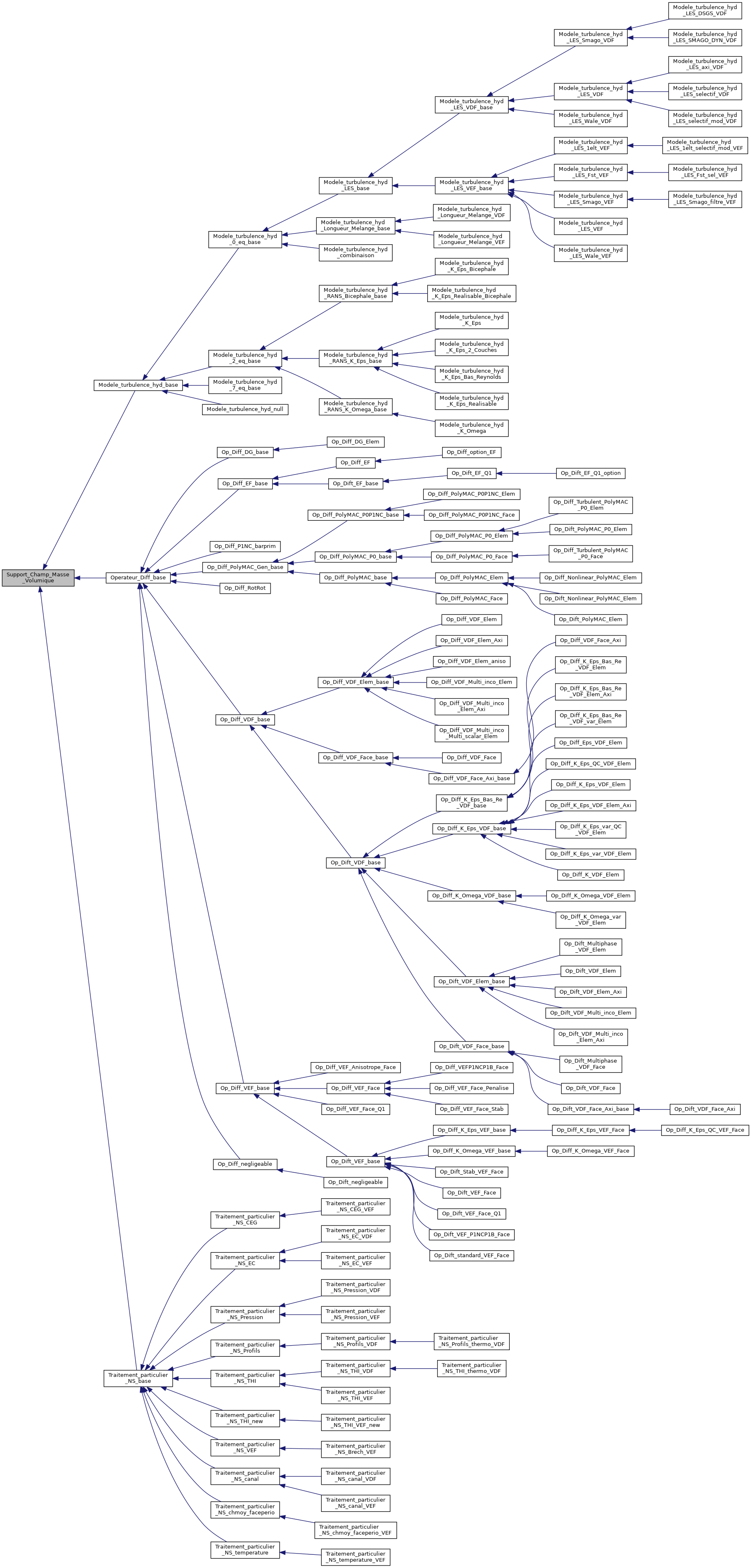

Inheritance graph

If the image is too small, right-click and open in new tab

List of Public Methods

• associer_champ_masse_volumique

• dissocier_champ_masse_volumique

• get_champ_masse_volumique

• has_champ_masse_volumique

• Support_Champ_Masse_Volumique

• support_ok

• ~Support_Champ_Masse_Volumique

List of Protected Methods

• declare_support_masse_volumique

Complete Member Function Documentation

associer_champ_masse_volumique

Definition

void Support_Champ_Masse_Volumique::associer_champ_masse_volumique(const Champ_base &)

Brief description

Methode a appeler dans la preparation du probleme pour demander a l’objet de tenir compte du champ de masse volumique en parametre.

Detailed description

References

• Process::exit

Referenced By

• Navier_Stokes_FT_Disc::lire_motcle_non_standard

• Navier_Stokes_FT_Disc::preparer_calcul

How to reference this method:

Copy the following pieces of RST/Markdown code to cite this element in other parts of the sphinx documentation (there is a copy button on the top-right when hovering the code block):

RST

:ref:`void Support_Champ_Masse_Volumique::associer_champ_masse_volumique(const Champ_base &) <support-champ-masse-volumique-public-void-support-champ-masse-volumique-associer-champ-masse-volumique-const-champ-base-ref>`

Markdown

[void Support_Champ_Masse_Volumique::associer_champ_masse_volumique(const Champ_base &)](#support-champ-masse-volumique-public-void-support-champ-masse-volumique-associer-champ-masse-volumique-const-champ-base-ref)

dissocier_champ_masse_volumique

Definition

void Support_Champ_Masse_Volumique::dissocier_champ_masse_volumique()

Brief description

Annule la reference a la masse volumique.

Detailed description

How to reference this method:

Copy the following pieces of RST/Markdown code to cite this element in other parts of the sphinx documentation (there is a copy button on the top-right when hovering the code block):

RST

:ref:`void Support_Champ_Masse_Volumique::dissocier_champ_masse_volumique() <support-champ-masse-volumique-public-void-support-champ-masse-volumique-dissocier-champ-masse-volumique>`

Markdown

[void Support_Champ_Masse_Volumique::dissocier_champ_masse_volumique()](#support-champ-masse-volumique-public-void-support-champ-masse-volumique-dissocier-champ-masse-volumique)

get_champ_masse_volumique

Definition

const Champ_base & Support_Champ_Masse_Volumique::get_champ_masse_volumique() const

Brief description

Renvoie le champ de masse volumique.

Detailed description

References

• TRUST_Ref<_CLASSE_>::non_nul

• TRUST_Ref<_CLASSE_>::valeur

Referenced By

• Op_Diff_DG_base::calculer_dt_stab

• Op_Diff_EF_base::calculer_dt_stab

• Op_Dift_EF_Q1::calculer_dt_stab

• Op_Diff_PolyMAC_base::calculer_dt_stab

• Op_Diff_PolyMAC_P0_Elem::calculer_dt_stab

• Op_Diff_PolyMAC_P0_Face::calculer_dt_stab

• Op_Diff_PolyMAC_P0P1NC_Face::calculer_dt_stab

• Op_Diff_VEF_base::calculer_dt_stab

• Op_Dift_VEF_base::calculer_dt_stab

• Op_Dift_VDF_Face_base::calculer_dt_stab

• Op_Diff_VDF_base::calculer_dt_stab_

• Traitement_particulier_NS_EC::calculer_Ec

• Op_Diff_VEF_base::calculer_pour_post

• Op_Dift_VEF_base::calculer_pour_post

How to reference this method:

Copy the following pieces of RST/Markdown code to cite this element in other parts of the sphinx documentation (there is a copy button on the top-right when hovering the code block):

RST

:ref:`const Champ_base & Support_Champ_Masse_Volumique::get_champ_masse_volumique() const <support-champ-masse-volumique-public-const-champ-base-ref-support-champ-masse-volumique-get-champ-masse-volumique-const>`

Markdown

[const Champ_base & Support_Champ_Masse_Volumique::get_champ_masse_volumique() const](#support-champ-masse-volumique-public-const-champ-base-ref-support-champ-masse-volumique-get-champ-masse-volumique-const)

has_champ_masse_volumique

Definition

int Support_Champ_Masse_Volumique::has_champ_masse_volumique() const

Brief description

Renvoie 1 si la masse volumique a ete associee, 0 sinon.

Detailed description

References

• TRUST_Ref<_CLASSE_>::non_nul

Referenced By

• Op_Diff_DG_base::calculer_dt_stab

• Op_Diff_EF_base::calculer_dt_stab

• Op_Dift_EF_Q1::calculer_dt_stab

• Op_Diff_PolyMAC_base::calculer_dt_stab

• Op_Diff_PolyMAC_P0_Elem::calculer_dt_stab

• Op_Diff_PolyMAC_P0_Face::calculer_dt_stab

• Op_Diff_PolyMAC_P0P1NC_Face::calculer_dt_stab

• Op_Diff_VDF_Elem_base::calculer_dt_stab

• Op_Diff_VEF_base::calculer_dt_stab

• Op_Dift_VEF_base::calculer_dt_stab

• Op_Dift_VDF_Face_base::calculer_dt_stab

• Op_Diff_VDF_base::calculer_dt_stab_

• Traitement_particulier_NS_EC::calculer_Ec

• Op_Diff_VEF_base::calculer_pour_post

• Op_Dift_VEF_base::calculer_pour_post

How to reference this method:

Copy the following pieces of RST/Markdown code to cite this element in other parts of the sphinx documentation (there is a copy button on the top-right when hovering the code block):

RST

:ref:`int Support_Champ_Masse_Volumique::has_champ_masse_volumique() const <support-champ-masse-volumique-public-int-support-champ-masse-volumique-has-champ-masse-volumique-const>`

Markdown

[int Support_Champ_Masse_Volumique::has_champ_masse_volumique() const](#support-champ-masse-volumique-public-int-support-champ-masse-volumique-has-champ-masse-volumique-const)

Support_Champ_Masse_Volumique

Definition

Support_Champ_Masse_Volumique::Support_Champ_Masse_Volumique()

Brief description

Constructeur de la classe.

Detailed description

Par defaut, une classe derivee deja codee appelle le constructeur sans argument. support_ok est mis a zero et on produit une erreur si Associer_champ_masse_volumique est appele. Pour signifier que le champ de masse volumique est supporte par la classe derivee, il faut appeler Declare_support_masse_volumique

How to reference this method:

Copy the following pieces of RST/Markdown code to cite this element in other parts of the sphinx documentation (there is a copy button on the top-right when hovering the code block):

RST

:ref:`Support_Champ_Masse_Volumique::Support_Champ_Masse_Volumique() <support-champ-masse-volumique-public-support-champ-masse-volumique-support-champ-masse-volumique>`

Markdown

[Support_Champ_Masse_Volumique::Support_Champ_Masse_Volumique()](#support-champ-masse-volumique-public-support-champ-masse-volumique-support-champ-masse-volumique)

support_ok

Definition

const int & Support_Champ_Masse_Volumique::support_ok() const

Brief description

Detailed description

Referenced By

• Navier_Stokes_FT_Disc::preparer_calcul

How to reference this method:

Copy the following pieces of RST/Markdown code to cite this element in other parts of the sphinx documentation (there is a copy button on the top-right when hovering the code block):

RST

:ref:`const int & Support_Champ_Masse_Volumique::support_ok() const <support-champ-masse-volumique-public-const-int-ref-support-champ-masse-volumique-support-ok-const>`

Markdown

[const int & Support_Champ_Masse_Volumique::support_ok() const](#support-champ-masse-volumique-public-const-int-ref-support-champ-masse-volumique-support-ok-const)

~Support_Champ_Masse_Volumique

Definition

Support_Champ_Masse_Volumique::~Support_Champ_Masse_Volumique()

Brief description

Destructeur virtuel (pour eviter les warnings)

Detailed description

How to reference this method:

Copy the following pieces of RST/Markdown code to cite this element in other parts of the sphinx documentation (there is a copy button on the top-right when hovering the code block):

RST

:ref:`Support_Champ_Masse_Volumique::~Support_Champ_Masse_Volumique() <support-champ-masse-volumique-public-support-champ-masse-volumique-dtor-support-champ-masse-volumique>`

Markdown

[Support_Champ_Masse_Volumique::~Support_Champ_Masse_Volumique()](#support-champ-masse-volumique-public-support-champ-masse-volumique-dtor-support-champ-masse-volumique)

declare_support_masse_volumique

Definition

void Support_Champ_Masse_Volumique::declare_support_masse_volumique(int ok)

Brief description

Le constructeur d’une classe derivee qui se sert de la masse volumique doit appeler cette fonction avec la valeur 1.

Detailed description

Si une classe cliente ( Navier Stokes par ex.) essaie d’associer la masse volumique a une classe qui n’a pas fait ok = 1, on s’arrete : fonction non implementee.

Referenced By

• Modele_turbulence_hyd_LES_Wale_VDF::Modele_turbulence_hyd_LES_Wale_VDF

• Modele_turbulence_hyd_LES_Wale_VEF::Modele_turbulence_hyd_LES_Wale_VEF

• Modele_turbulence_hyd_null::Modele_turbulence_hyd_null

• Op_Diff_EF_base::Op_Diff_EF_base

• Op_Diff_PolyMAC_P0_Elem::Op_Diff_PolyMAC_P0_Elem

• Op_Diff_PolyMAC_P0P1NC_Elem::Op_Diff_PolyMAC_P0P1NC_Elem

• Op_Diff_VDF_Elem_base::Op_Diff_VDF_Elem_base

• Op_Diff_VDF_Face::Op_Diff_VDF_Face

• Op_Diff_VDF_Face_base::Op_Diff_VDF_Face_base

• Op_Diff_VEF_Face::Op_Diff_VEF_Face

• Op_Diff_VEF_Face_Stab::Op_Diff_VEF_Face_Stab

• Op_Diff_VEFP1NCP1B_Face::Op_Diff_VEFP1NCP1B_Face

• Op_Dift_EF_base::Op_Dift_EF_base

• Op_Dift_VDF_Face::Op_Dift_VDF_Face

• Op_Dift_VEF_Face::Op_Dift_VEF_Face

• Traitement_particulier_NS_EC_VDF::Traitement_particulier_NS_EC_VDF

• Traitement_particulier_NS_EC_VEF::Traitement_particulier_NS_EC_VEF

How to reference this method:

Copy the following pieces of RST/Markdown code to cite this element in other parts of the sphinx documentation (there is a copy button on the top-right when hovering the code block):

RST

:ref:`void Support_Champ_Masse_Volumique::declare_support_masse_volumique(int ok) <support-champ-masse-volumique-protected-void-support-champ-masse-volumique-declare-support-masse-volumique-int-ok>`

Markdown

[void Support_Champ_Masse_Volumique::declare_support_masse_volumique(int ok)](#support-champ-masse-volumique-protected-void-support-champ-masse-volumique-declare-support-masse-volumique-int-ok)

Attributes Documentation

ref_champ_rho_ (private)

TRUST_Ref<Champ_base *> Support_Champ_Masse_Volumique::ref_champ_rho_

support_ok_ (private)

int Support_Champ_Masse_Volumique::support_ok_
